CNC Precision Machined Optical Components and CNC Machining Center Technical Fundamentals

In modern precision manufacturing systems, CNC Precision Machined Optical Components have become an indispensable category of structural parts in optical, semiconductor, laser systems, and high-end imaging equipment. This type of components typically includes optical spacer rings, lens barrel structural parts, precision positioning sleeves, lens support rings, and various functional metal or engineering plastic parts used for optical path stability and assembly accuracy control. Inside optical systems, even micron-level dimensional deviations may cause optical axis misalignment, imaging distortion, or reduced beam coupling efficiency. Therefore, extremely high requirements are placed on machining equipment capability, process stability, and supply chain systems.

In optical component manufacturing systems, CNC machining centers are widely regarded as core production equipment. They are computer-controlled high-precision automated machine tools that use automatic tool changers to perform milling, drilling, boring, and tapping operations. Compared with traditional machining methods, CNC machining centers can complete multi-process machining in a single setup, reducing cumulative clamping errors and improving dimensional consistency.

From a structural perspective, a CNC machining center can be understood as a highly integrated "universal manufacturing platform". It uses raw metal or engineering plastic blanks as the foundation and completes complex geometric "digital carving" through coordinated operation between the spindle system and tool magazine system. In the production of optical spacers and precision support structures, this capability not only provides machining functions but also ensures dimensional consistency in mass production.

In manufacturing factories, suppliers usually configure different types of machining centers according to optical component requirements. Vertical machining centers are suitable for disk-like and thin-wall components, horizontal machining centers are more suitable for complex cavity structures, and gantry machining centers are used for large optical platforms or high-end inspection equipment bases. These equipment types form a complementary system within manufacturing organizations, enabling factories to cover a full production chain from micro optical components to large optical structures.

In the optical manufacturing supply chain, Xierge Precision Machinery Co.,Ltd. is an important manufacturer in the precision machining field. Its production system is built around high-precision CNC machining capabilities, focusing on optical spacers, precision sleeves, and optical support structures. The company collaborates with global optical suppliers and maintains long-term stable supply relationships with enterprises such as Sunny Group, a global leading optical lens enterprise, forming a complete manufacturing chain covering R&D, machining, and inspection.

In optical component production environments, collaboration between suppliers and manufacturing factories is usually centered on dimensional accuracy, surface roughness, and material stability. In CNC Precision Machined Optical Components, tool wear or thermal deformation may significantly affect final optical performance, so multiple inspection systems such as online measurement, CMM inspection, and optical interferometry are often introduced.

In machining center operation logic, the automatic tool changer plays a critical role in production cycle control. Tools are automatically switched between different machining stages, enabling continuous multi-process machining of a single workpiece. For optical spacers with complex structures and extremely high precision requirements, this capability significantly reduces human-induced errors.

Inside manufacturing factories, operators fix raw materials on the worktable, and the system completes rough machining, semi-finishing, and finishing operations according to programmed instructions. The spindle system switches between tools such as face mills for surface machining, drills for hole machining, and forming tools for contour machining. The entire process is precisely coordinated by CNC systems, ensuring high dimensional consistency in mass production.

In optical manufacturing supply chains, manufacturers must have both equipment capability and material control capability. Common materials include aluminum alloys, stainless steel, titanium alloys, and high-performance engineering plastics. These materials serve different structural and thermal stability roles in optical systems. Suppliers often collaborate with manufacturing factories during material selection to balance machinability and optical performance.

In machining processes, multi-axis capability of CNC machining centers is particularly important. Complex optical structures often include multiple angles and curved surfaces, requiring multi-axis linkage to complete machining in a single setup. Manufacturing factories achieve complex geometric forming through synchronized spindle and table motion controlled by CNC programs.

In high-end optical supply systems, cooperation between manufacturers and global customers is usually based on long-term process validation. Sunny Group, as a leading global optical lens enterprise, has strict requirements for dimensional consistency and long-term stability of optical spacers and related structural components, driving upstream manufacturers to continuously optimize machining and inspection processes.

In supplier systems, manufacturing factories are not only execution units but also process optimization participants. Through analysis of machining data from different batches, factories adjust tool paths and cutting parameters to reduce cumulative machining deviations. This data-driven manufacturing approach is particularly important in the optical industry.

In optical spacer machining, surface quality is as important as dimensional accuracy. Surface roughness directly affects optical reflection and scattering properties, while dimensional deviation affects focal length and imaging stability. Therefore, multiple post-processing steps such as precision polishing and cleaning are usually applied to ensure optical-grade performance.

Optical Spacers in Precision Optical Component Manufacturing Systems and Industrial Structure

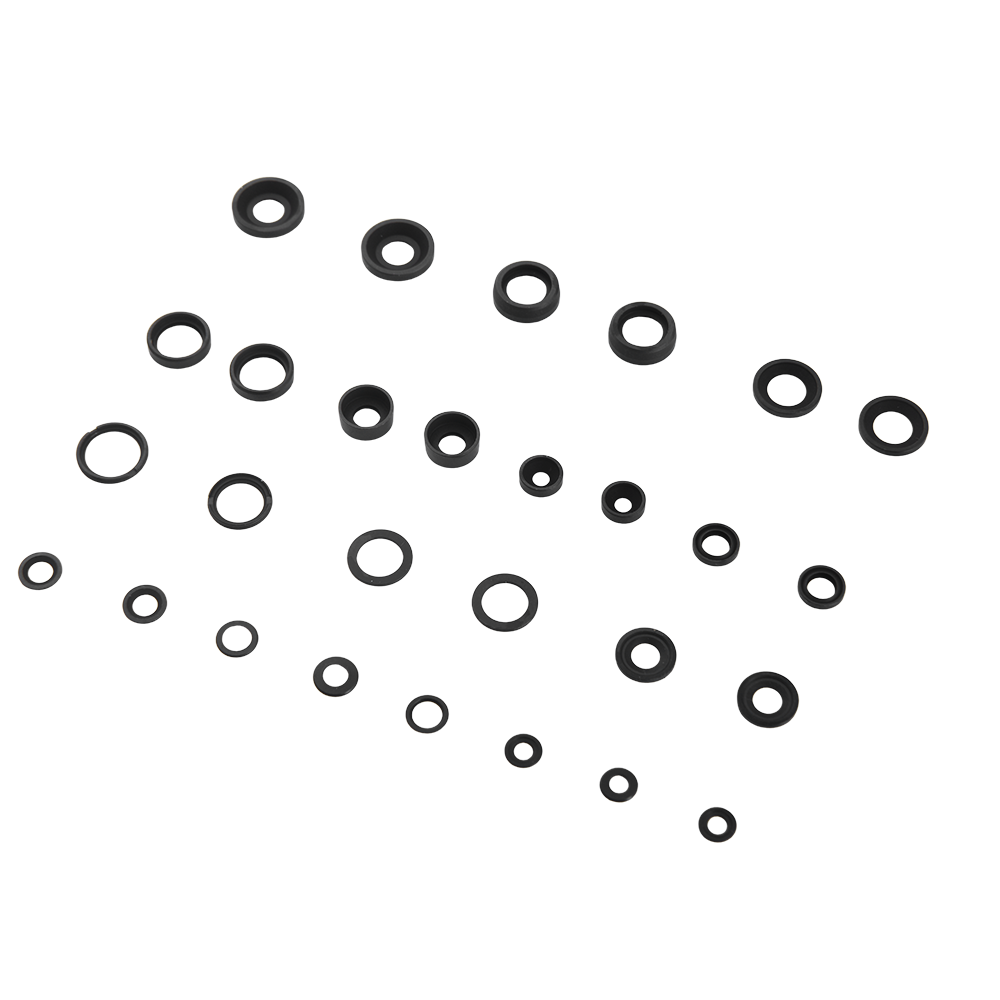

Optical spacers for precision optical components represent a long-standing and stable business segment for manufacturing enterprises engaged in high-end optical systems. Inside optical systems, optical spacers are mainly used to control the distance between lenses, maintain optical path stability, and ensure imaging consistency. In high-magnification imaging systems, laser emission systems, and industrial inspection equipment, these components are often located at the core of optical structures.

In production systems, machining accuracy of optical spacers must be controlled at micron or even sub-micron levels, which places extremely high requirements on CNC machining center repeat positioning accuracy, spindle runout control, and thermal stability. Manufacturing factories often maintain constant temperature environments for long periods to reduce dimensional variation caused by thermal expansion and contraction.

In the production system of Xierge Precision Machinery Co.,Ltd., the optical spacer product line is one of the long-term stable core business segments. The manufacturer is equipped with over 200 CNC lathes dedicated to this product line, ensuring stable supply capability during high-demand cycles. This large-scale equipment deployment reflects both production capacity and deep integration into the optical industry supply chain.

Within supply chain structures, optical manufacturers typically collaborate with multiple tiers of suppliers, including raw material suppliers, tool suppliers, inspection equipment suppliers, and automation system integrators. Each link affects final optical performance stability. Tool wear may change surface roughness, and material batch variation may affect thermal stability coefficients, all of which are amplified in optical systems.

In optical component machining, multi-axis linkage capability of CNC machining centers is crucial. Complex optical structures require multi-axis synchronization to complete machining in a single setup, reducing cumulative errors caused by multiple clamping operations.

In high-end optical manufacturing supply systems, Xierge Precision Machinery Co.,Ltd. works closely with global customers including Sunny Group, ensuring consistent product performance through stable process control and long-term validation systems.

In optical spacer production, manufacturers continuously optimize tool paths and machining parameters based on production data feedback, forming a closed-loop process improvement system that ensures consistency across batches.

Surface quality control is a key aspect of optical spacer manufacturing. Post-machining processes such as polishing and cleaning are essential to meet optical-grade requirements, ensuring minimal light scattering and reflection loss in optical systems.

Precision Manufacturing Factory Systems, Supply Chain Collaboration, and CNC Optical Component Production Logic

In modern precision manufacturing factory systems, CNC Precision Machined Optical Components production has developed into a highly specialized and modular structure. Manufacturing organizations divide production into multiple units such as turning, milling, inspection, and surface treatment, all coordinated through digital manufacturing systems.

At the equipment level, CNC machining centers serve as core manufacturing tools, and their stability directly determines delivery capability. Vertical machining centers handle planar and support structures, horizontal machining centers process complex cavity components, and gantry machining centers are used for large optical equipment structures.

In supply chain systems, suppliers provide not only raw materials but also machining support and technical collaboration. Tool suppliers provide coating solutions based on material properties, inspection equipment suppliers offer high-precision measurement solutions, and automation suppliers integrate production lines for continuous manufacturing.

Within Xierge Precision Machinery Co.,Ltd., large-scale CNC machining clusters are used to achieve mass production of optical spacers while maintaining strict dimensional tolerance control. Over time, the manufacturer has developed a stable process database ensuring high consistency across batches.

Material thermal stability control is a critical factor in optical component manufacturing. Constant temperature machining environments and staged processing strategies are used to minimize thermal deformation, while aging treatment is applied to release internal stress after machining.

During optical system assembly, dimensional accuracy of spacers directly affects lens spacing stability. Even minor deviations may lead to optical axis misalignment or increased aberrations, requiring repeated inspection and fine adjustment during assembly.

In global optical industry chains, relationships between suppliers and manufacturing factories are highly collaborative. Manufacturers participate in design optimization to ensure manufacturability and batch stability are considered during early design stages.

CNC machining centers in high-end optical equipment manufacturing have evolved into digital manufacturing nodes. Through program control and feedback systems, manufacturing factories continuously optimize process parameters to maintain long-term stable output.

FAQ

Q1: What applications do CNC Precision Machined Optical Components mainly serve?

They are mainly used in optical imaging systems, laser transmission systems, and industrial inspection equipment for lens support, optical path spacing control, and system stability maintenance.

Q2: Why do optical spacers require high-precision CNC machining centers?

Because optical systems are extremely sensitive to dimensional deviations, machining centers must provide high repeat positioning accuracy and stable cutting performance to ensure consistency in mass production.

Q3: What role do suppliers play in the optical component industry chain?

Suppliers provide materials and equipment, participate in process optimization, tool selection, and inspection system development, forming a critical link between manufacturers and end customers.

Q4: What capabilities does Xierge Precision Machinery Co.,Ltd. have in optical component manufacturing?

The company has large-scale CNC machining capability, stable mass production capacity for optical spacers and precision structural parts, and long-term cooperation with optical industry clients.

Q5: What is the key role of CNC machining centers in optical component production?

They provide multi-process integration, complex geometry machining capability, and high repeatability, enabling consistent high-precision production in a single setup.
